CPJ-3000 مدل
گارانتی و خدمات
کاتالوگ

I. Usage
CPJ-3000 series is a high cost performance, high efficiency, universal type vertical profile projector developed by Yihui.

It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape，can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on, widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.

II. Features
It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.08%.Coordinate measurement deviation is ≤(3.0 + L/200) um, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.

P.S The Digital Readout has a function of interchange between mm and inches

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

CPJ-3020 مدل
گارانتی و خدمات
کاتالوگ

I. Usage

Horizontal profile projector CPJ-3020W is a photoelectric measuring system of high precision and efficiency can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. It requires in the checking department and workshop and is widely used in machinery, mould, tool, electricity and light industry.


II. Feature

▶   300mm diameter screen with digital protractor.
▶   200X100mm precision movement work-stage.
▶   Work-stage sway range between  15°.
▶   Halogen profile and fiber surface illumination adjustable.
▶   Geometric multifunction data processing system upgrade to DRO DP300.
▶   Built-in Mini-printer.
▶   Available 10x,20x,50x,100x objective, over-chart and foot-switch edge detector etc.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

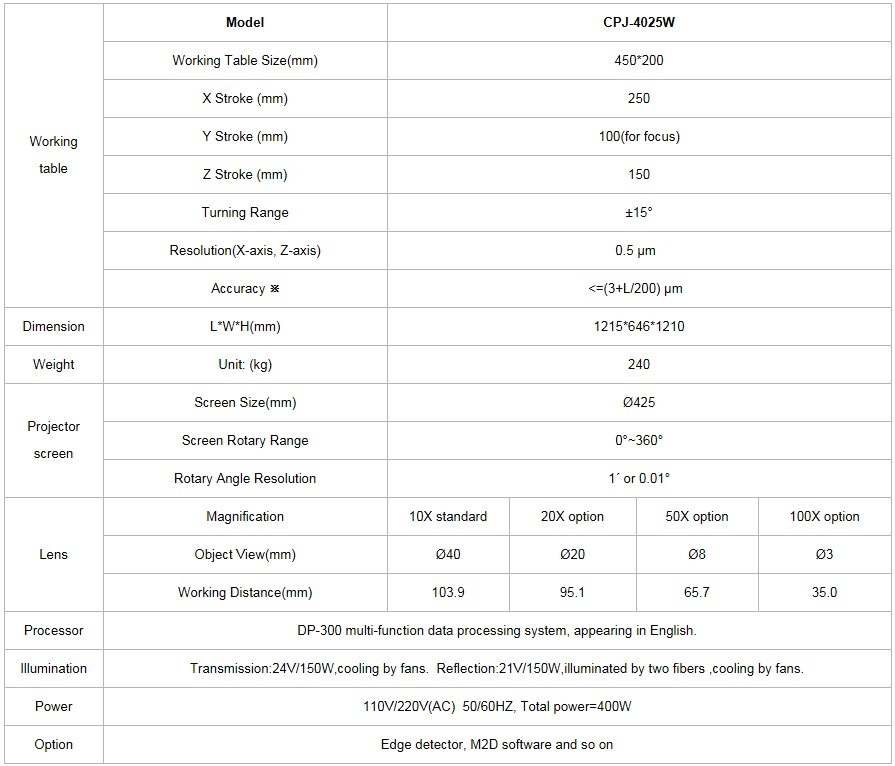

CPJ-4025 مدل
گارانتی و خدمات
کاتالوگ

I. Usage

Horizontal profile projector CPJ-4025W is a photoelectric measuring system of high precision and efficiency，can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.

II. Feature

1. It provides accurate 2D measurement for all common geometric features such as circle, line, angle, distance, intersection points etc.
2. All measured results can be printed directly or transferred to computer for further processing.
3. Manufactured with top class components, under high standard of workmanship.
4. Achieves very high measurement accuracy.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

CPJ-6030 مدل
گارانتی و خدمات
کاتالوگ

I. Usage

Horizontal profile projector CPJ-6030W is a photoelectric measuring system of high precision and efficiency，can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.


II. Feature

▶   φ615mm diameter screen with digital protractor.
▶   300x150mm precision movement work-stage, 300x200mm optional.
▶   Work-stage sway range between  15°.
▶   Halogen profile and fiber surface illumination adjustable.
▶   Geometric multifunction data processing system DRO DP300.
▶   Built-in Mini-printer.
▶   Available 10x,20x, 50x,100x objective, rotary table, working cupboard and foot-switch, etc.
