Mabna Sanj Taban

1 -فروش
فروش انواع دستگاه های اندازه گیری سه بعدی ( VMM ، VMS ، MULTI SENSOR )
نماینده انحصاری شرکت سیلواک سوئیس در ایران SYLVAC
نماینده انحصاری شرکت وای هوآی هنگ کنگ در ایران YIHUI

2 - خدمات فنی مهندسی
آموزش کامل اپراتوری و نرم افزاری
ارتقا و به روز رسانی نرم افرازی و سخت افزاری انواع دستگاه اندازه گیری تصویری ( وی ام ام ، وی ام اس ، مولتی سنسور )
تعمیر و تعویض قطعات
بررسی فنی و صحه گذاری انواع دستگاه نو و کارکرده در هنگام تحویل گیری

3 - کالیبراسیون
کالیبره انواع دستگاه های اندازه گیری سه بعدی ( VMM ، VMS ، MULTI SENSOR ) با گیج شیشه ای ( گیج زاویه ) و گیج بلوک های مرجع
صدور برگه تست و کالیبراسیون با تاییدیه اداره استاندارد و 17025
اصلاح خطاهای نرم افزاری با دسترسی به فایل های ارورمپ
اصلاح خطاهای مکانیکی

مشخصات
گالری
کاتالوگ

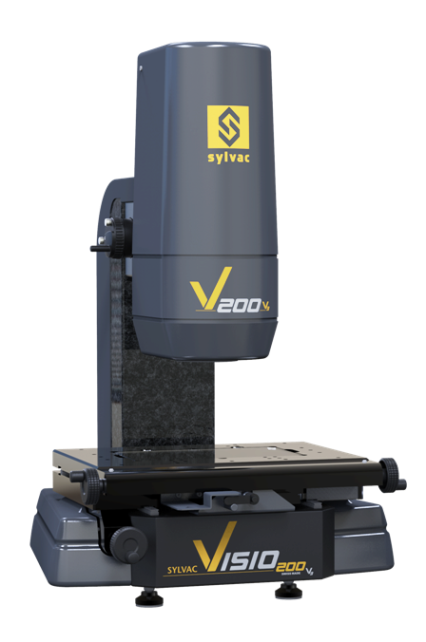

• Larger field of view up to 15x9.5mm
• Full HD Camera
• Improved image quality
• New software layout
• Auto toggle screens live/schematic
• Very robust granite construction
• High quality and durable guidance system
• Manual movement of the table with quick displacement system
• Manual or motorized zoom
• Triple programmable lighting
• Position shown by laser pointer
• Sylvac Vista software with CAD comparison function
• Easy to use

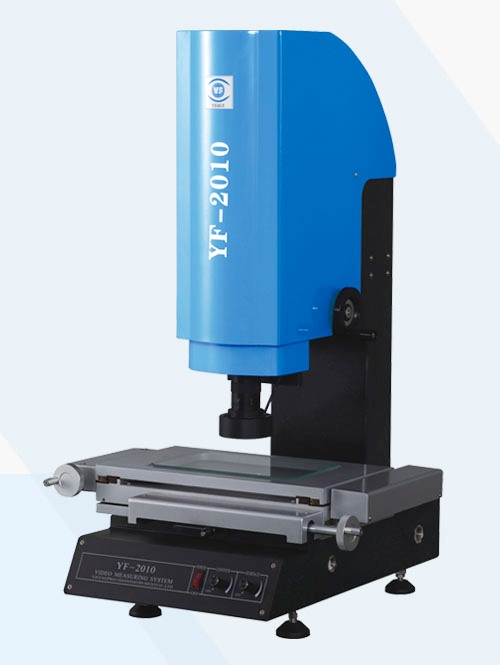

YF مدل
گارانتی و خدمات
کاتالوگ

I. Usage

YF Series is the basic type manual Video Measuring System developed by Yihui.
It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.


II. Features

1. It adopts TEO™ 1 / 3’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK series data card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
 4. Granite base and column, high stability.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

VMM VMS دستگاه اندازه گیری تصویری و تماسی

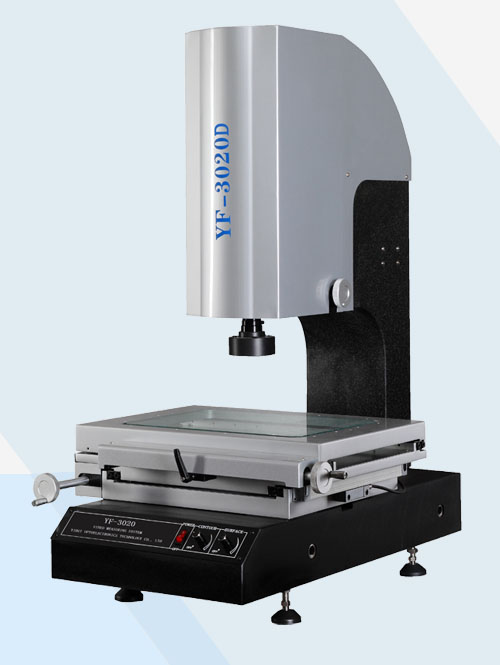

YF-D مدل
گارانتی و خدمات
کاتالوگ

I. Usage

YF Series is the basic type manual Video Measuring System developed by Yihui.
It has been widely used in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.


II. Features

1. It adopts TEO™ 1 / 3’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK series data card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
 4. Granite base and column, high stability.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

VMF مدل
گارانتی و خدمات
کاتالوگ

I. Usage

VMF Series is the movable steel structure type Video Measuring Machine produced by Yihui.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mould, and other industries for precision measurement.



II. Features

1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Guiguang™ zoom lens, big FOV, guarantee clear image during fast moving image measurement.

2. Motorized in Z axis, it can satisfy precision focus and high accuracy non-contact height, depth measurement with easy clicks on metrology software.

3. Programmable integrated 8 regional light control, achieve professional surface measurement.

4. Granite base, high stability. Movable steel structure, big measuring range makes it popular in industry quality control.

5. Low cost even with easy operation and concrete report function, best choice for workshop use.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

VMS مدل
گارانتی و خدمات
کاتالوگ

I. Usage

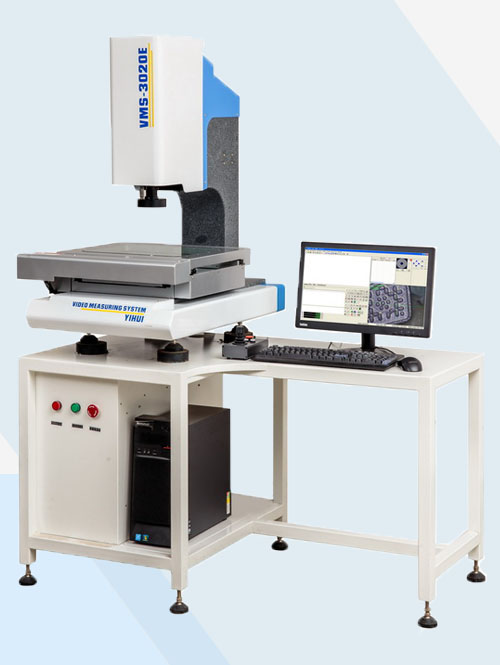

VMS Series is an universal type of CNC Video Measuring System developed by Yihui.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement.


II. Features

1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
4. With my company-specific CNC software has greatly enhanced the efficiency measurement.
5. Granite base, column, high stability.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

VMG مدل
گارانتی و خدمات
کاتالوگ

I. Usage

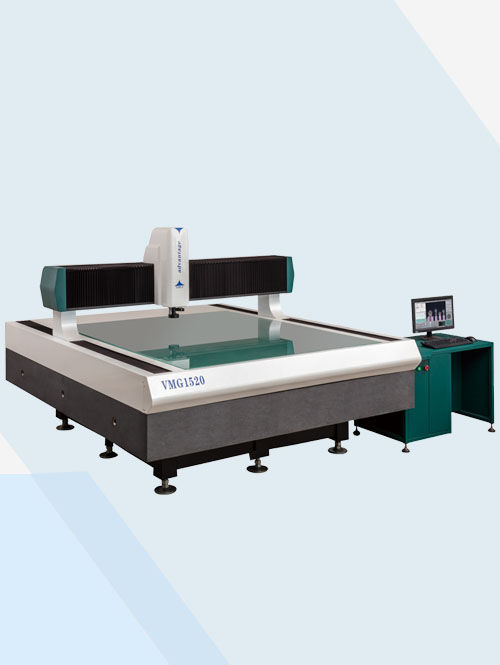

VMG series is latest large stroke gantry type CNC video measuring developed by Yihui.
It adopts original imported from Japan screw drive and servo control technology, combined with our self-developed automated measurement software, it has been widely used in LCD display parts, PCB, communication device parts, sheet metal, space industry and other industries for precision auto measurement.


II. Feature


1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.

2. Granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.

3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.

4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.

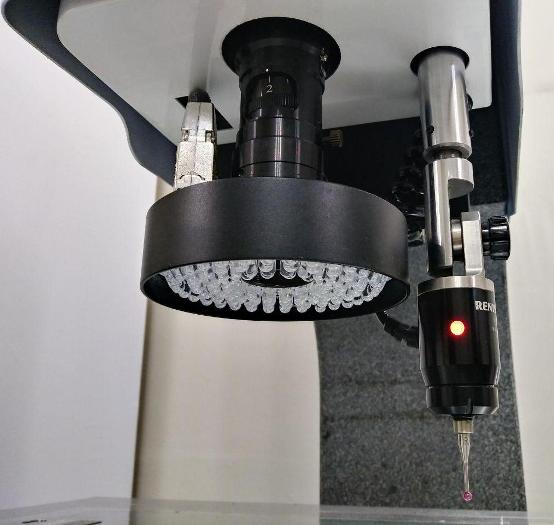

5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.

Guaranty		After Sale Service
2 Years		10 Years
Installation	Training	Calibration	Service

VMU مدل
گارانتی و خدمات
کاتالوگ

I. Usage

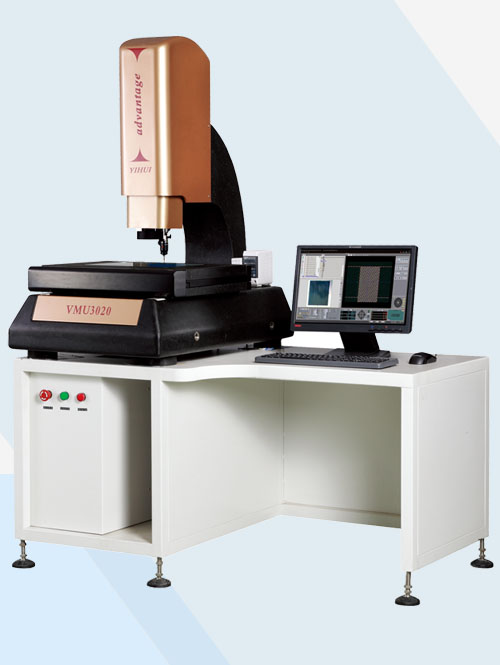

VMU Series is the most advanced CNC type video measuring system with 2 μm precision developed by Yihui. It is widely applied in machinery, electronics, mould, etc. for precision auto measurement.
.


II. Features


1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.

2. Granite base, goose-neck column, high stability structure. With German & Japanese auto-control technology, can achieve high precision motion.

3. Programmable control of integrated 40 group, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.

4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.

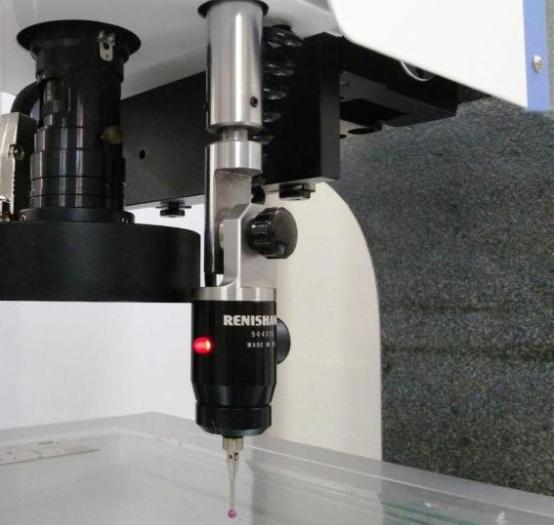

5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
